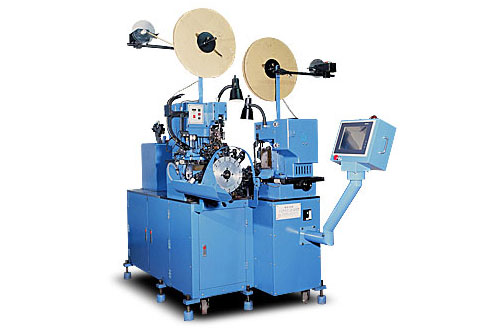

雙頭全自動端子壓著機
AUTOMATIC TWO END TERMINAL CRIMPING MACHINE
RH-8W |
|
| |
| |
 |
| ˙ |
本機以超高速進行電線尺寸切斷、兩端剝皮兩端端子全自動壓著。 |
| ˙ |
圓形觸控彩色介面，功能完整，操作方式一目了然。 |
| ˙ |
中英之切換，適合中外使手。 |
| ˙ |
伺服馬達為控制軸心，定位精準，穩定快速。 |
| ˙ |
全自動生產，故障警訊自動停機顯示。 |
| ˙ |
This is a full automatil machine specially developed for cutting wire to con stant length, Stripping both ends and crimping terminal on bothends of wire at high speed. |
| ˙ |
The figural tactile touch with color interface. The complete capacities and convenitent & clear operation mode. |
| ˙ |
Applicable bilingual languages (Sino-English) exchange operation type.
Axle center controlled servo motor, With precise positioning, Stable and rapid. |
| ˙ |
Whole automatic production, If malfunction occurred, Alarm and machine stope automatically and display on. |
| |
|
|
| |
 |
| 型式 |
RH-8W |
| 機能 |
電線長度尺寸設定切斷，兩端自動剝皮，自動兩端端子壓著 |
| 壓縮空氣 |
3kg/cm2, 50l/min |
| 控制方式 |
電子、電機以及凸輪 |
| |
手動單行程動作以及自動(連續) |
| 生產能力 |
600mm以下, 0.7s/條 (5000條每時)
1000mm時, 0.9s/條 (4000條每時)
1500mm時, 1.2s/條 (3000條每時)
2600mm, 1.8s/條 (2000條每時)
6000mm, 3.6s/條 (1000條每時) |
|
| 電線切斷長度 |
75mm∼9999mm |
| 切斷長度精度 |
變動範圍1mm+ (切斷長x0.5％以下） |
| 剝皮長度 |
No. 1側2mm∼11mm / No. 2側2mm∼25mm |
| 電線規格 |
AWG#30(0.5m m2)∼AWG#12(2.0m m2)(standard) |
| 檢測裝置 |
1. 電線過緊
2. 電線完了
3. 手把驅動
4. 壓著不良
5. 張緊失效
|
6. 電線連結處
7. 剝皮不良
8. 端子完子
9. 端子過緊
|
|
| 壓著能力 |
2 ton 衝程 30m/m |
| 電源 |
AC110/220(V) 50/60HZ |
| 重量 |
機體約1100kg |
| 本體尺寸 |
1100Wx2900Lx1600H |
|
 |
| |
| Model |
RH-8W |
| Features |
Measuring, cutting stripping both ends crimping both ends. |
| Press Capacity |
3kg/cm2, 50l/min |
| Control System |
Electronic, electric and cam control |
| |
Manual, single cycle and auto (continuous) |
| Capacity |
600mm以下, 0.7s/條 (5000條每時)
1000mm時, 0.9s/條 (4000條每時)
1500mm時, 1.2s/條 (3000條每時)
2600mm, 1.8s/條 (2000條每時)
6000mm, 3.6s/條 (1000條每時) |
|
| Cutting Length |
75mm∼9999mm |
| Cutting Accuracy |
Variation within 1mm+ 0.5% of the cut length
at AV 0.5m/m wire |
| Stripping Length |
No. 1 erimping side 2mm∼11mm /
No. 2 erimping side 2mm∼25mm |
| Wire Size |
AWG#30(0.5m m2)∼AWG#12(2.0m m2)(standard) |
| Detector |
1. Wire Load
2. No Wire
3. Handle
4. Crimp miss No.1, No.2
5. Drawtension
|
6. Wire Joint
7. Stripmiss
8. No Tarminal
9. Tarminal Load |
|
| Crimping Force |
2 ton Stroke 30m/m |
| Power |
AC110/220(V) 50/60HZ |
| Weight |
Approx 1100kg |
| Dimension |
1100Wx2900Lx1600H |
|
|
| |
| |
|
|
|
|
|
 |
