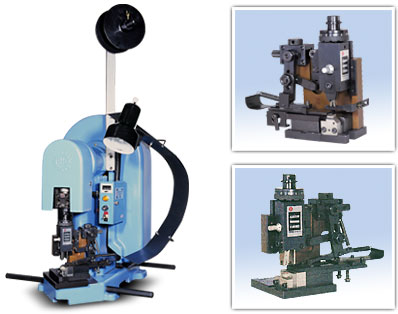

連續端子自動壓著機
SEMI-AUTO CRIMPING MACHINE
RH-2000 |
|
| |
| |
 |
| ˙ |
橫送使用、直送使用都可（卡式模具）。 |
| ˙ |
採用八點式離合器控制，故障無，安全性高。 |
| ˙ |
耗電量省，聲音小，調易。 |
| ˙ |
機體採用高強度，鋼鐵製造，結構堅強。 |
| ˙ |
Use both in side feed and end feed ways. (applicator) |
| ˙ |
Eight-point clutch control with higher safety, no break-down. |
| ˙ |
Lower power consumption, low noise and easy to adjust. |
| ˙ |
Main frame is made of high strength cast iron with firm structure. |
|
| |
 |
| 型式 |
RH-2000 |
| 最大出力 |
3,000kgs |
| 衝程 |
32mm |
| 電源 |
AC 110/220V 50/60Hz |
| 機體尺寸 |
560x320x600mm |
| 總重 |
88kgs |
|
| |
| Model |
RH-2000 |
| Max. Output |
3,000kgs |
| Stroke |
32mm |
| Power |
AC 110/220V 50/60Hz |
| Dimensions |
560x320x600mm |
| Total Weight |
88kgs |
|
 |
| |
| |
|
|
|
|
|
 |
