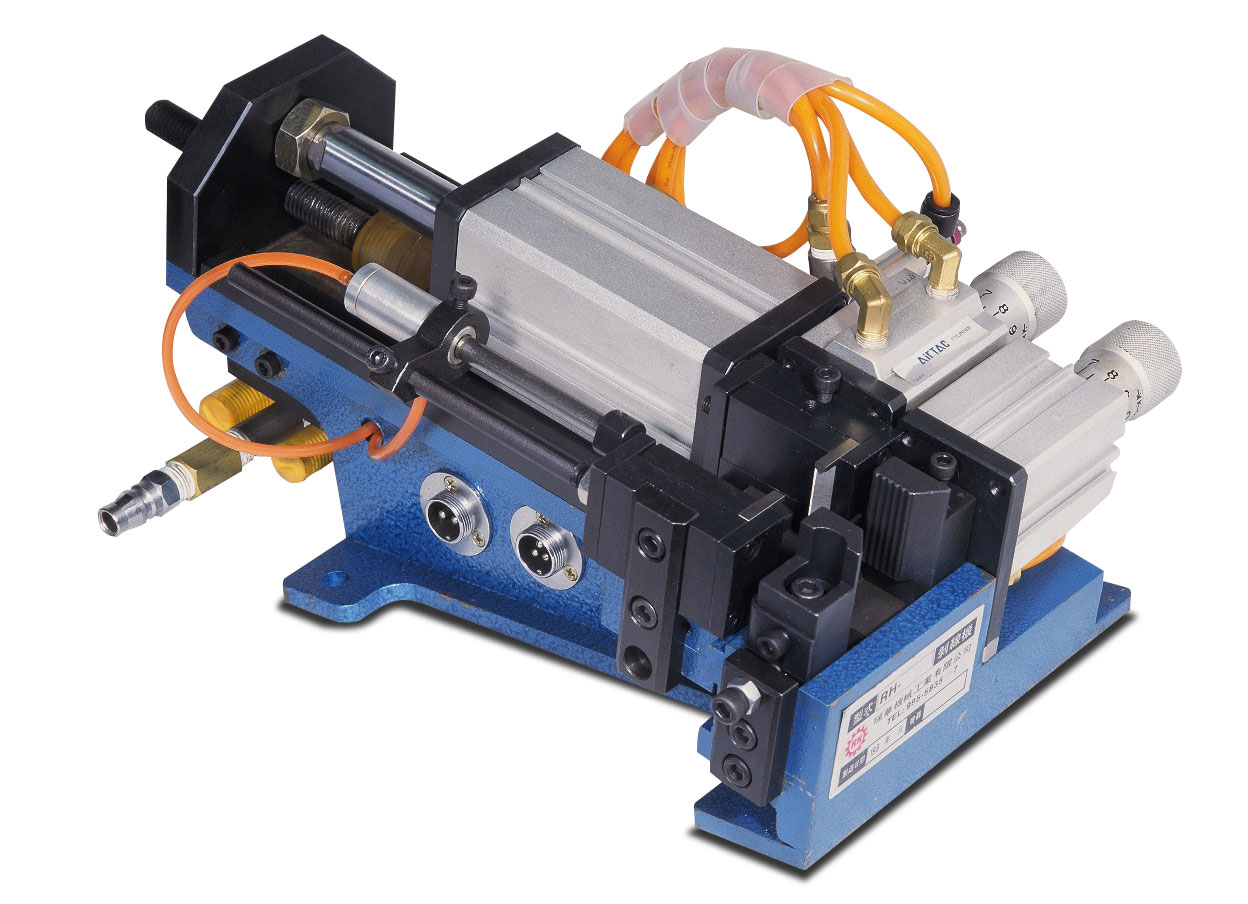

氣電式電線剝線機
AIR WIRE STRIPPER
RH-75 |
|
| |
 |
| ˙ |
氣缸式機座。 |
| ˙ |
一體成型滑座，往復行程平穩，切剝精準。 |
| ˙ |
氣電式控制，輕巧敏捷，聲音小。 |
| ˙ |
可調式結構，視線材粗細而作調整。 |
| ˙ |
AC/DC 電源線，電腦線，電腦，多心線，同軸線，等用線。 |
| ˙ |
線可單獨切斷。 |
| ˙ |
The cylinder seat. |
| ˙ |
Undivided aliding setting running stroke stable, accurate separating. |
| ˙ |
Air power compact speedy noise low. |
| ˙ |
Knife holder adjustable dependent an width of wire. |
| ˙ |
Suitable for AC/DC power wire, computer wire, electronic wire, multi-core wire, and Coaxial wire. |
| ˙ |
The wire can be cuted alone. |
| |
|
|
| |
 |
| 型式 |
RH-75 |
| 使用氣壓 |
6∼8 kgs/cm2 |
| 剝線最大尺寸 |
Ø8mm |
| 剝線長度 |
75mm |
| 體積(長x寬x高) |
390x240x165mm |
| 總重 |
13.8kgs |
| 電源 |
AC 110/220V 50/60Hz |
|
| |
| Model |
RH-75 |
| Air Con |
6∼8 kgs/cm2 |
| Stripping Cxpacit |
Ø8mm |
| Stroke |
75mm |
| Dimensions (LxWxH) |
390x240x165mm |
| Total Weight |
13.8kgs |
| Power Supply |
AC 110/220V 50/60Hz |
|
 |
| |
 |
| 內線剝皮 |
同軸線剝皮 |
雙層剝皮 |
 |
 |
 |
| 多線剝皮 |
多線分離剝皮 |
不等長度剝皮 |
 |
 |
 |
|
| |
| Inter-wire stripping |
Coaxial wire stripping |
Double-layer stripping |
|
|
|
| Multe-wire stripping |
Mult-wire spearating & stripping |
Variable-length stripping |
|
|
|
|
|
| |
| |
|
|
|
|
|
 |
