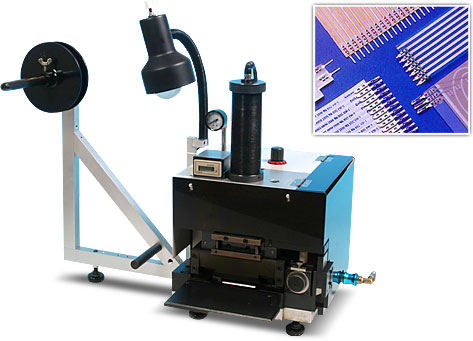

RH-26
軟性排線連續端子壓著機
CRIMPING MACHINE OF FLAT CABLES
RH-26
˙
採用空油增壓缸，型體小所佔空間小。
˙
適用軟性排線(FFC)及柔性印刷電路(FPC)端子壓著。
˙
端子PIN 數一次壓著可自2pin到26pin。
˙
端子規格適用2.54內切公母端子。
˙
Spec-saving, small size design by using. Pneumatic & hydraulic pressure cylinder.
˙
This machine applies to FFC/FPC crimping.
˙
From 2 to 26 contacts are crimped at one time.
˙
The machine can be delivered with two different tooling: one for male solder tabs and one for female contacts.
型式
RH-26
電源
AC 110V/220V
氣壓量
6∼8kg/cm
2
壓著力
1,000kg
體積
32x31x50mm
總重
37kg
Model
RH-26
Power Supply
AC 110V/220V
Compressed Air Pressure
6∼8kg/cm
2
Crimping Force
1,000kg
Dimensions
32x31x50mm
Total Weight
37kg
